Details
Feature:
1.Type of programming: Programming with the receiver
2.Buttons : 2 Buttons
3.Code: Rolling Code
4. Frequency: 433.92MHz
How to program:
1. Press the LEARN button or the transparent button located under the ECOSTAR motor. The LED light on the motor blinks slowly. Let the button go.
2. During the next 10 seconds, press a desired button on your new remote control.
3. The LED light on the motor blinks faster. Let the button go.
4. Press the same button again on your new remote control. Keep it pressed down.
5. The LED light on the motor blinks very fast. Let the button go.
6. Your new remote control is programmed.
To erase all your remote controls:
1. Press the transparent button P located under the ECOSTAR motor. Keep it pressed down.
2. Wait 5 seconds. Let the button go.
3. The LED light on the receiver blinks slowly for 1 second, then faster for 4 seconds and then very fast for 2 seconds.
4. All the remote controls are erased.
Compatible with the following EcoStar garage door operator models:
Ecostar Liftronic 500, 700, 800 and Portronic D5000, S4000, D2500
ATTENTION : You can program only 6 RSE2 remote controls with the ECOSTAR motor
Describe:
Shell material: ABS
Dimensions: 55*34.2*12.6mm
Working voltage: 12v
Working current: ≤27mA
Transmitting distance: 100 meters (open space)
Set contains:
1 x garage door remote control
1 x keychain
1 x instruction manual
Packing:

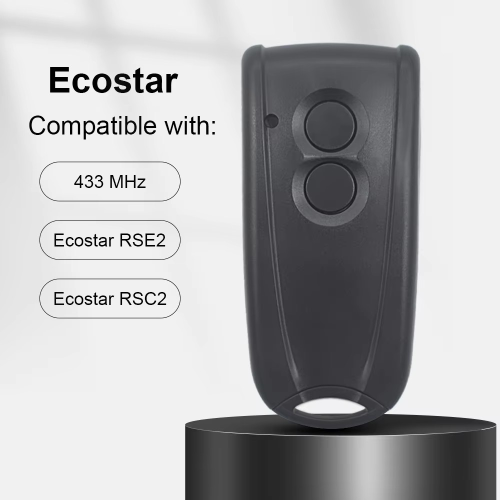

1 Set x 2-button garage door opener compatible with EcoStar RSE2 RSC2
