Details
Features:

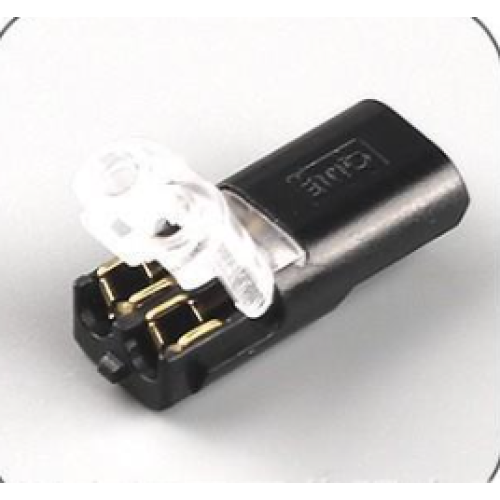

This D2 dual-wire interlocking connector features a dual-row, two-wire integrated structure; suitable for 18~22AWG wires with a cross-sectional area of 0.35~0.75mm² and an outer diameter of <2.1mm; the internal spring contacts are made of high-quality brass, offering low conductivity loss, oxidation resistance, and stable conductivity; it features a male-female interlocking structure, a one-row, two-wire design, a snap-lock transparent cover, and an insulated, flame-retardant outer shell; applications include LED lighting, automotive wiring harnesses, and wiring connections for various low-voltage electronic products. Simply align the positive and negative terminals of the wires, insert the red and black power wires directly into the connector slot without stripping the insulation or soldering; tighten the transparent lock, and the internal brass pierce the copper contacts to automatically penetrate the cable insulation, firmly gripping the copper core to conduct the circuit, allowing for hand-wiring. After connection, the male and female connectors interlock and lock together, facilitating easy assembly and disassembly, and allowing for repeated disassembly and reassembly for future circuit maintenance. The transparent flip-top latch locking structure firmly secures the wires after locking, preventing them from easily coming loose or losing power even in bumpy vehicle conditions or outdoor vibrations, ensuring a reliable connection and preventing sparking.
Describe:
Materials: Polycarbonate and copper
Voltage: 300V
Current: 9A
Operating Temperature: -10℃ to 45℃
Temperature Resistance: Outer casing 105℃
Flame Retardant Rating: UL-94-VI compliant
Wire Cross-section: 0.35 to 0.75 square millimeters
Suitable Wire Diameter (including insulation): 1.5mm to 2.1mm in diameter
Packing:
1 Pcs x Two-wire interlock connector
